3 Foot Modular Waterfall Kit

This mid-sized waterfall has been a classic for many years and features a clear sheet waterfall if there is enough water flow.

Weight of kit: 1,500 lbs
Heaviest piece: 240 lbs
Mortar needed*: 400 lbs
Recommend flow rate: 40-60 gpm for sheet effect

*Mortar (masonry cement and sand mix) should be the best quality available and is available in 40 and 80 lb bags at home improvement stores. For larger projects it is more economical to mix Mortar cement, type S, with masonry sand (1 part cement to 2-3 parts of sand depending on how fine the sand is.

Epoxy or construction adhesive like that used for concrete blocks can be used to set small rock pieces, eliminating mortar mess. RicoRock® Waterproofing also works as a thin set, eliminating the mortar joint.

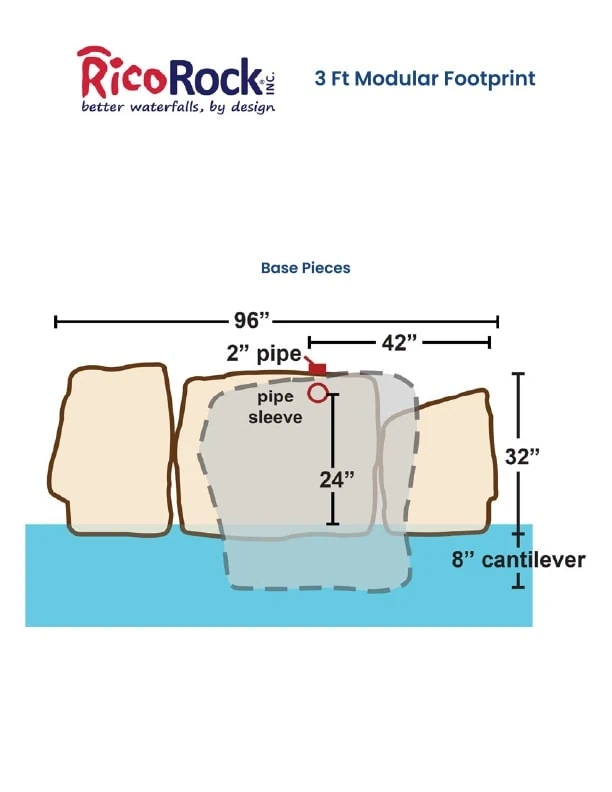

3 Foot Modular Kit Diagram

Click to download the diagram

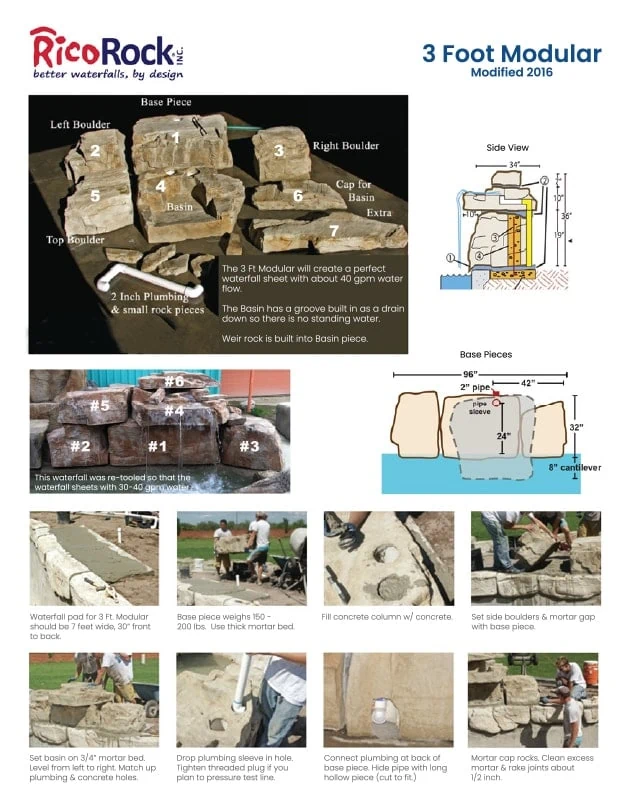

3 Foot Modular Kit Cutsheet

Click to download the cutsheet



Installation is not included, installation must be done by a professional, color kit include
