4 Piece Ledger Swimming Pool Waterfall Kit

Simple is sometimes better. This low profile waterfall is a best seller because it is a good size for most pools and the splash of the cascade has a natural effect.

Weight of kit: 1,000 lbs
Heaviest piece: 300 lbs
Mortar needed*: 300 lbs
Recommend flow rate: 15-40 gpm

*Mortar (masonry cement and sand mix) should be the best quality available and is available in 40 and 80 lb bags at home improvement stores. For larger projects it is more economical to mix Mortar cement, type S, with masonry sand (1 part cement to 2-3 parts of sand depending on how fine the sand is.

Epoxy or construction adhesive like that used for concrete blocks can be used to set small rock pieces, eliminating mortar mess. RicoRock® Waterproofing also works as a thin set, eliminating the mortar joint.

Lift Kit for 4 Piece Ledger

Standard or custom lift kits make the 4 Piece Ledger taller and more dramatic. The maximum overhang is 10 inches; it is not intended to be used as a grotto.

Weight of lift kit: 800lb.

4 Piece Ledger Kit Diagram

Click to download the diagram

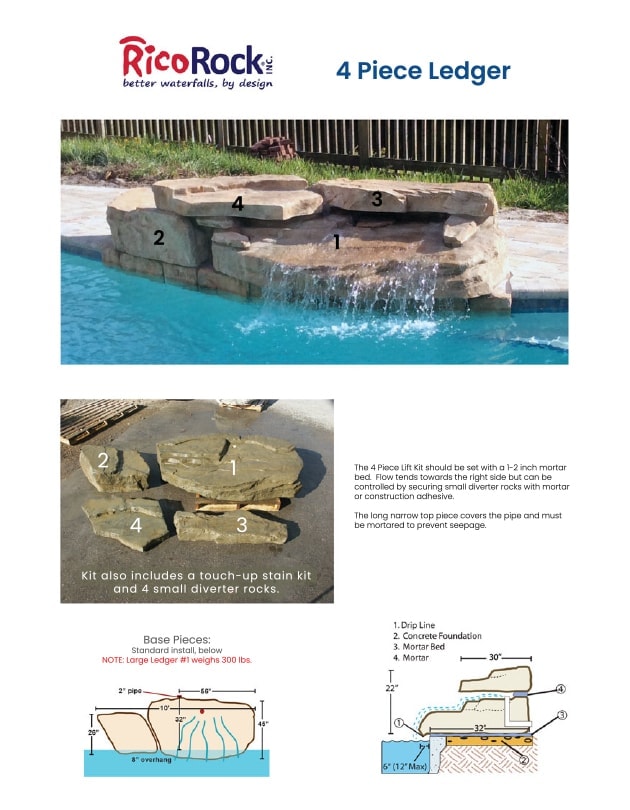

4 Piece Ledger Kit Cutsheet

Click to download the cutsheet



Installation is not included, installation must be done by a professional, color kit include
