4 Foot Double Waterfall Kit

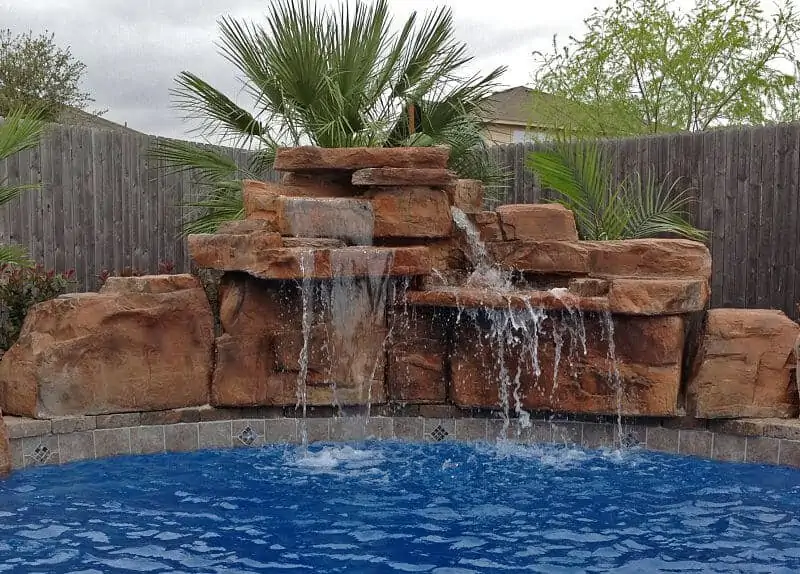

Powerful, but tranquil at the same time, the 4 FT Double is our most popular waterfall kit. This double waterfall is perfectly scaled for a swimming pool because it is wide and has several layers that create a sheet waterfall on the left and a cascade on the right. Multiple base pieces allow it to be installed on a radius or corner. Now available with built in sleeves for LED lights at every level.

Weight of kit: 2,500 lbs
Heaviest piece: 240 lbs
Mortar needed*: 800 lbs
Recommend flow rate: 60-80 gpm

*Mortar (masonry cement and sand mix) should be the best quality available and is available in 40 and 80 lb bags at home improvement stores. For larger projects it is more economical to mix Mortar cement, type S, with masonry sand (1 part cement to 2-3 parts of sand depending on how fine the sand is.

Epoxy or construction adhesive like that used for concrete blocks can be used to set small rock pieces, eliminating mortar mess. RicoRock® Waterproofing also works as a thin set, eliminating the mortar joint.

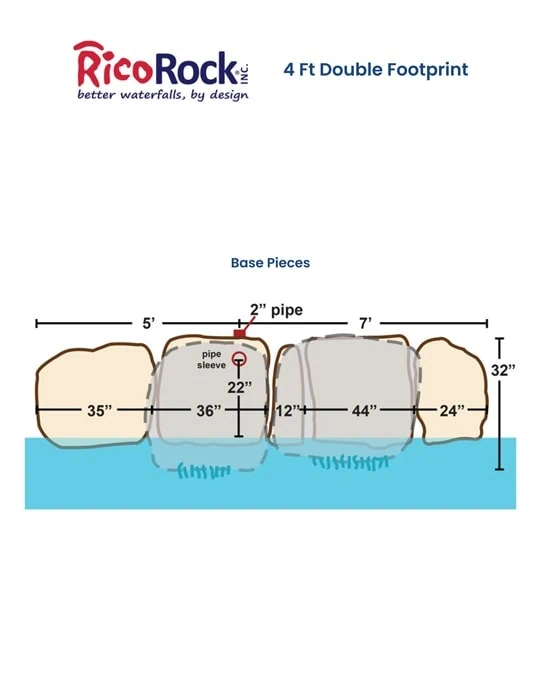

4 Foot Double Kit Diagram

Click to download the diagram

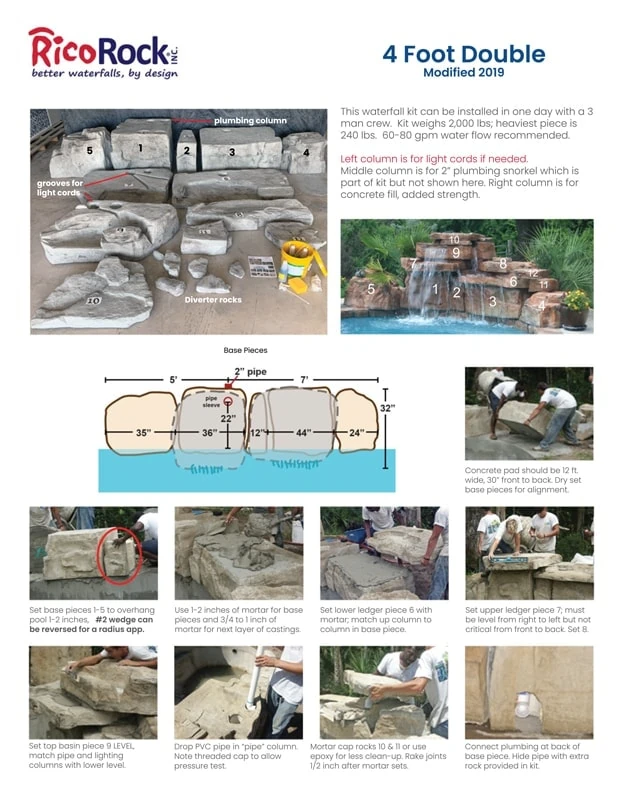

4 Foot Double Kit Cutsheet

Click to download the cutsheet



Installation is not included, installation must be done by a professional, color kit include
